ANSI B16.5 Class 150 Flanges are among the most widely used piping components in industrial applications worldwide, providing standardized connections for everything from chemical processing plants to commercial building services. The “ANSI B16.5″ designation refers to the American National Standard that governs the dimensions, materials, and pressure-temperature ratings for pipe flanges and flanged fittings from NPS ½” to 24″. The “Class 150” designation, often written as 150#, indicates a specific pressure-temperature rating suitable for a broad range of low to medium-pressure applications.
Understanding these flanges is critical for engineers, designers, and procurement specialists to ensure system safety, integrity, and compatibility. This comprehensive guide explores the different types of Class 150 flanges, their key dimensions, pressure capabilities, and material specifications, serving as an essential reference for your piping projects.
Table of Contents
Understanding Pressure Rating: What Does Class 150 Mean?
A common misconception is that a Class 150 flange is rated for 150 PSI at all temperatures. In reality, the pressure rating of a flange is dependent on the temperature of the service environment.
The “150” in Class 150 represents a pressure class designation, not a direct PSI rating at all temperatures. This dimensionless number indicates the flange’s pressure-containing capacity, which decreases as the service temperature increases. The pressure-temperature rating ensures the flange can perform safely under specific operating conditions, with different materials having different rating tables.
ANSI B16.5 Class 150 Flange Dimensions
The primary purpose of the ANSI B16.5 standard is to ensure dimensional uniformity, allowing flanges from different manufacturers to mate correctly. The key dimensions for Class 150 flanges are standardized from NPS ½” to 24″.
Table: ANSI B16.5 Class 150 Flange Dimensions (Select Sizes)
| Nominal Pipe Size (NPS) | Outside Diameter (O) | Flange Thickness (T) | Bolt Circle Diameter | Number of Bolts | Bolt Hole Diameter |
|---|---|---|---|---|---|
| 1/2″ | 3.50 inches | 0.38 inches | 2.38 inches | 4 | 0.62 inches |
| 1″ | 4.25 inches | 0.50 inches | 3.12 inches | 4 | 0.62 inches |
| 2″ | 6.00 inches | 0.69 inches | 4.75 inches | 4 | 0.75 inches |
| 4″ | 9.00 inches | 0.88 inches | 7.50 inches | 8 | 0.75 inches |
| 6″ | 11.00 inches | 0.94 inches | 9.50 inches | 8 | 0.88 inches |
| 8″ | 13.50 inches | 1.06 inches | 11.75 inches | 8 | 0.88 inches |
| 12″ | 19.00 inches | 1.19 inches | 17.00 inches | 12 | 1.00 inches |
| 16″ | 23.50 inches | 1.38 inches | 21.25 inches | 16 | 1.12 inches |
| 24″ | 32.00 inches | 1.81 inches | 29.50 inches | 20 | 1.38 inches |

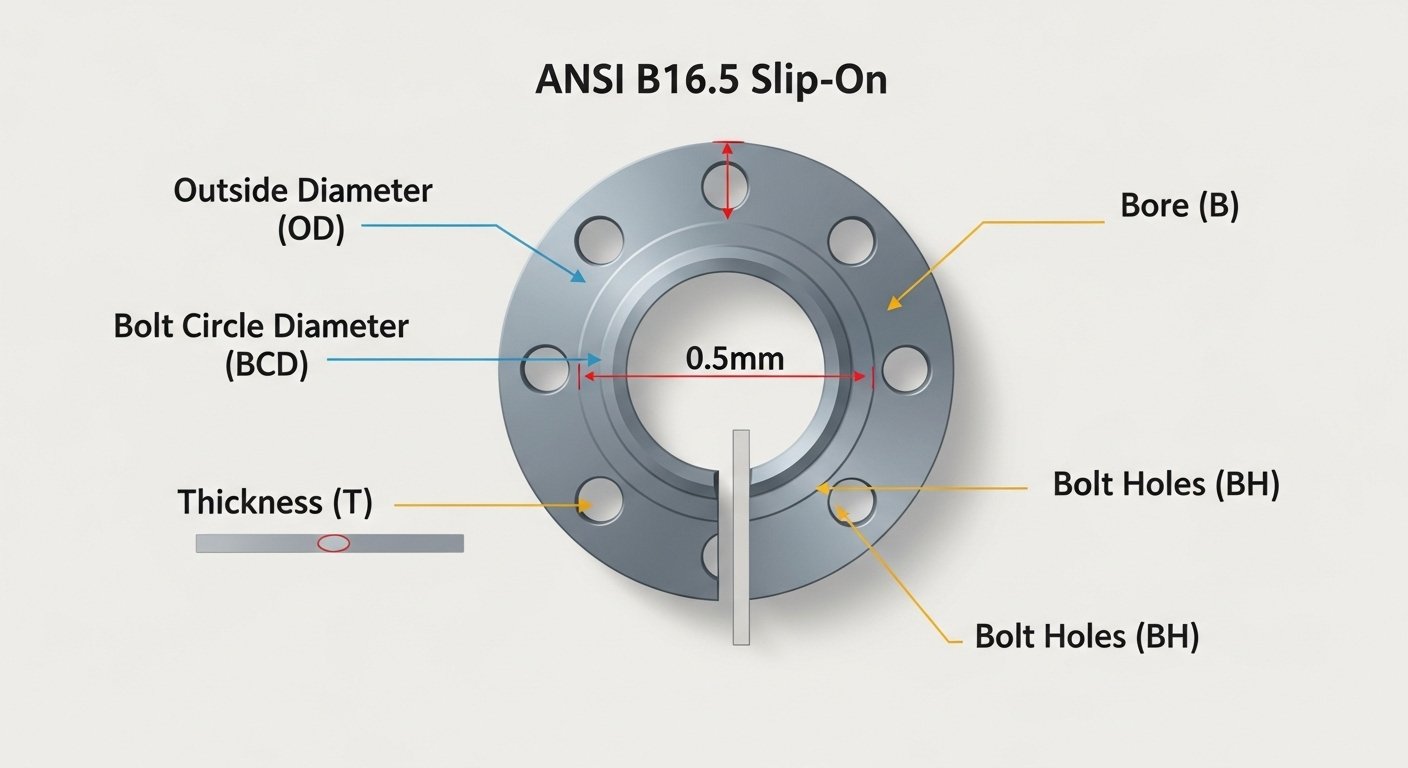

Key Dimensional Terminology:
- Outside Diameter (O): The overall diameter of the flange.
- Flange Thickness (T): The thickness of the flange facing.
- Bolt Circle Diameter: The diameter of the circle through the centers of the bolt holes . This is a critical dimension for proper alignment.
- Bore (B): The inner diameter of the flange, which must match the pipe’s inner diameter for a smooth flow.
- Raised Face (R): Most ANSI B16.5 Class 150 flanges feature a 1/16-inch raised face to improve gasket compression and sealing.
Types of ANSI B16.5 Class 150 Flanges
The ANSI B16.5 standard covers several types of flanges, each designed for a specific purpose and method of installation.
Table: Common Types of ANSI B16.5 Class 150 Flanges and Their Applications
Weight Comparison of Class 150 Flange Types
Understanding flange weights is crucial for structural support design, transportation planning, and cost estimation. The following table shows approximate weights in kilograms for different flange types according to ASME B16.5 standards.
Table: ANSI B16.5 Class 150 Flange Weights in Kilograms (Select Sizes)
| NPS | Slip-On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
|---|---|---|---|---|---|---|
| 1/2″ | 0.5 | 0.5 | 0.9 | 0.5 | 0.9 | 0.9 |
| 1″ | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 1.4 |
| 2″ | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.7 |
| 4″ | 5.9 | 5.9 | 5.9 | 5.9 | 7.7 | 7.4 |
| 6″ | 8.6 | 8.6 | 8.6 | 8.6 | 12.2 | 11.7 |
| 8″ | 13.5 | 13.5 | 13.5 | 13.5 | 21.2 | 18.9 |
| 12″ | 28.8 | 28.8 | 28.8 | 28.8 | 55.4 | 39.6 |
Materials and Manufacturing Standards
ANSI B16.5 Class 150 flanges can be manufactured from a variety of materials to suit different service conditions, including the fluid being transported, pressure, temperature, and corrosion requirements.
Common Material Specifications:
- Carbon Steel: ASTM A105 is a common specification for forged carbon steel components for ambient and higher-temperature service
- Stainless Steel: ASTM A182 covers forged stainless steel flanges (e.g., grades F304, F316) for corrosive environments and high-temperature service
- Low-Temperature Carbon Steel: ASTM A350 covers forged carbon and alloy steel flanges for low-temperature service where notch toughness is important
- Alloy Steel: Grades like ASTM A182 F11, F22 are used for high-temperature service in power generation and refineries
The ASME B16.5 standard organizes flange materials into different groups, with each group having specific pressure-temperature ratings. This systematic approach ensures consistent performance across different materials within the same group.
Selection and Installation Guidelines
Choosing the correct flange type and ensuring proper installation are crucial for a leak-free and safe piping system.
Selection Criteria:
- Application: Determine the purpose—is it for a permanent connection (Weld Neck), a future disassembly point (Lap Joint), or to close a line (Blind)?.
- Service Conditions: Always check the pressure-temperature rating of the flange material for your specific operating conditions. Do not assume 150 psi is always safe.
- Cost vs. Performance: While Slip-On flanges are more cost-effective, Weld Neck flanges offer superior performance in demanding applications.
Installation Best Practices:
- Proper Alignment: Ensure bolt holes are aligned correctly using the bolt circle diameter as a guide
- Gasket Selection: Choose a gasket material compatible with the service fluid and temperature
- Bolt Tightening: Follow a cross-bolt tightening pattern to ensure even gasket compression and avoid creating a leak path
Historical Context and Standardization
The ANSI B16.5 standard has a rich history dating back almost a century. In 1920, the American Engineering Standards Committee (AESC), which later became ANSI, organized Sectional Committee B16 to unify and further develop standards for pipe flanges and fittings. The first standard was released as ASA B16E-1932, and after numerous revisions, it was published as ASA B16.5 in 1957 .
A significant development occurred in 1973 with the ANSI B16.5-1973 publication, which developed a rating basis for Class 150 flanges and officially established what is known as “ANSI class”. In 1982, the American National Standards Committee B16 was reorganized as an ASME Committee operating under ANSI-accredited procedures, leading to the standard being designated ASME/ANSI B16.5. Today, the standard is officially titled ASME B16.5, though the term “ANSI B16.5” remains in common use.
Frequently Asked Questions (FAQs)
1. Is ANSI Class 150 the same as 150 PSI?
No, this is a common misconception. Class 150 is a pressure class designation, not a direct pressure rating. Its maximum allowable pressure decreases as the service temperature increases, and varies depending on the flange material.
2. What is the difference between ANSI B16.5 and ASME B16.5?
There is no technical difference. The standard was originally designated as ANSI B16.5. The committee was later reorganized under ASME, and the standard is now officially titled ASME B16.5. However, the term “ANSI B16.5” is still widely used in the industry.
3. What is the raised face on a Class 150 flange?
Most ASME B16.5 flanges have a 1/16-inch raised face (RF). This small raised surface helps to concentrate pressure on a smaller gasket area, improving the seal.
4. Can I use a Class 150 flange for high-temperature applications?
Yes, but you must de-rate its pressure capacity. You must consult the pressure-temperature rating tables for the specific flange material to determine the maximum allowable pressure at your system’s operating temperature.
5. What standards cover flanges larger than NPS 24″?
For flanges larger than NPS 24″, the governing standard is ASME B16.47, which covers large-diameter steel flanges from NPS 26″ to 60″.
6. Are the dimensions for all flange types (WN, SO, BL) the same for a given NPS and Class?
For key dimensions like Outside Diameter, Bolt Circle, Number of Bolts, and Bolt Hole Diameter, yes, they are standardized. This ensures that, for example, a Class 150 Weld Neck flange can bolt up to a Class 150 Blind flange. However, other dimensions like hub length and bore will differ by type.
7. What materials are commonly used for Class 150 flanges?
Common materials include ASTM A105 for carbon steel, ASTM A182 for various grades of stainless steel (e.g., F304, F316), and ASTM A350 for low-temperature carbon steel applications.
Conclusion
ANSI B16.5 Class 150 flanges are fundamental components in piping systems across countless industries. A thorough understanding of their pressure-temperature relationship, dimensional standards, and the specific advantages of each flange type is essential for designing, maintaining, and operating safe and efficient systems. By selecting the correct flange type and material for your application and adhering to proper installation practices, you can ensure long-term, leak-free performance.
For all your Flange requirements, consult with reputable manufacturers and suppliers like Texas Flange, who can provide the right flange solutions tailored to your application’s demands.
