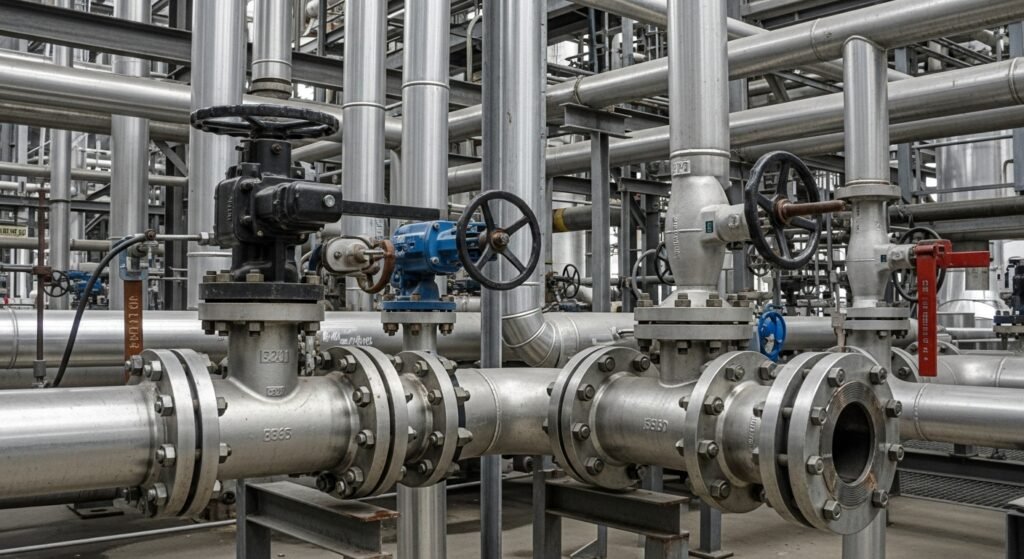

ANSI Flanges are critical components in piping systems worldwide, providing standardized connections for pipes, valves, pumps, and other equipment. These flanges are manufactured according to standards overseen by the American National Standards Institute (ANSI), a private, non-profit organization that has been coordinating and approving U.S. standards since 1918. The term “ANSI flange” typically refers to flanges manufactured to the ASME B16.5 specification, which ANSI has adopted as an American National Standard.
Understanding ANSI flange specifications is essential for engineers, designers, and procurement specialists across industries from oil and gas to water treatment. These standards ensure compatibility, safety, and reliability in piping systems by providing precise dimensions, pressure-temperature ratings, and material specifications. This comprehensive guide explores everything you need to know about ANSI flanges, their dimensions, types, and applications.
Table of Contents
What are ANSI Flanges?
ANSI Flanges are standardized piping components designed to connect sections of pipes, valves, pumps, and other equipment to form a complete piping system. The standardization ensures that components from different manufacturers can be assembled without compatibility issues .
The ASME B16.5 standard is the primary specification governing ANSI flanges, covering steel pipe flanges and flanged fittings from NPS 1/2 to NPS 24 in pressure classes from 150 to 2500 . This standard includes specifications for dimensions, tolerances, materials, marking, pressure-temperature ratings, testing, and methods of designating openings for pipe flanges and flanged fittings .
Historical Context and Standardization
The history of ANSI flange standards dates back almost a century. In 1920, the American Engineering Standards Committee (AESC), which later became ANSI, organized Sectional Committee B16 to unify and further develop standards for pipe flanges and fittings . After numerous revisions throughout its history, the standard was published as ASA B16.5 in 1957 .
A significant development occurred in 1973 with the ANSI B16.5-1973 publication, which developed a rating basis for Class 150 flanges and officially established what is known as “ANSI class” . In 1982, the American National Standards Committee B16 was reorganized as an ASME Committee operating under ANSI-accredited procedures .
Understanding ANSI Pressure Class Ratings
A fundamental aspect of ANSI flange specifications is the pressure class rating, often denoted as Class 150, 300, 400, 600, 900, 1500, and 2500 . These classifications are widely misunderstood in the industry.
What “Class” Really Means
A common misconception is that a “Class 150” flange is rated for 150 PSI at all temperatures. In reality, the pressure rating decreases as the service temperature increases . The class designation is a dimensionless number that represents the flange’s pressure-containing capacity at a reference temperature, not a direct PSI rating.
Different materials rated in specific classes react differently as the temperature changes. Therefore, selecting the appropriate pressure class requires consulting pressure-temperature rating tables for your specific flange material and operating conditions.
Table: ANSI/ASME Pressure Class and PN Rating Equivalents
| ANSI/ASME Class | PN Rating | Typical Applications |
|---|---|---|
| 150 | PN20 | Low-pressure water, air systems |
| 300 | PN50 | Moderate pressure process systems |
| 400 | PN68 | High-pressure utility systems |
| 600 | PN110 | High-pressure process systems |
| 900 | PN150 | High-temperature steam systems |
| 1500 | PN260 | Refinery and chemical processes |
| 2500 | PN420 | Extreme pressure applications |
Key ANSI Flange Dimensions
The primary purpose of ANSI standardization is to ensure dimensional uniformity, allowing flanges from different manufacturers to mate correctly. The key dimensions for ANSI flanges are standardized across types and sizes.
Critical Dimensional Parameters
- Nominal Pipe Size (NPS): The nominal diameter of the connecting pipe.
- Outside Diameter (O.D.): The overall diameter of the flange.
- Inner Diameter (I.D.): The measurement of the central opening, which must match the connecting pipe’s flow path.
- Bolt Circle Diameter: The diameter of the circle that passes through the center of all bolt holes.
- Bolt Hole Spacing: The number, diameter, and spacing of bolt holes.
- Flange Thickness: The thickness of the flange facing.
- Raised Face Diameter: The diameter of the raised sealing surface.
Table: ASME/ANSI B16.5 Class 150 Flange Dimensions (Select Sizes).
| NPS (inches) | Flange O.D. (inches) | Flange Thickness (inches) | No. of Bolts | Bolt Hole Diameter (inches) | Bolt Circle (inches) |
|---|---|---|---|---|---|
| 1/2 | 3.50 | 0.38 | 4 | 0.62 | 2-3/8 |
| 1 | 4.25 | 0.50 | 4 | 0.62 | 3-1/8 |
| 2 | 6.00 | 0.69 | 4 | 0.75 | 4-3/4 |
| 4 | 9.00 | 0.88 | 8 | 0.75 | 7-1/2 |
| 6 | 11.00 | 0.94 | 8 | 0.88 | 9-1/2 |
| 8 | 13.50 | 1.06 | 8 | 0.88 | 11-3/4 |
| 12 | 19.00 | 1.19 | 12 | 1.00 | 17.00 |
| 16 | 23.50 | 1.38 | 16 | 1.12 | 21-1/4 |
| 24 | 32.00 | 1.81 | 20 | 1.38 | 29-1/2 |
Common Types of ANSI Flanges
The ANSI B16.5 standard covers several types of flanges, each designed for specific applications and installation methods .
Weld Neck Flanges (WN)
Weld neck flanges feature a long tapered hub that is butt-welded to the pipe, providing excellent stress distribution and making them ideal for high-pressure and high-temperature applications.
Slip-On Flanges (SO)
Slip-on flanges slide over the pipe and are secured with two fillet welds. They are easier to align than weld neck flanges and are more cost-effective for low-pressure applications.
Blind Flanges (BL)
Blind flanges are solid disks used to blank off the end of a piping system or valve, allowing for future expansion or easy inspection access.
Socket Weld Flanges (SW)
Socket weld flanges have a socket into which the pipe is inserted and then welded around the hub. They provide good flow characteristics and are stronger than slip-on flanges.
Threaded Flanges (THD)
Threaded flanges feature internal NPT threads that screw onto a male-threaded pipe, making them suitable for applications where welding is not permissible.
Lap Joint Flanges (LJ)
Lap joint flanges are used with a stub end that is welded to the pipe, allowing the flange to rotate freely. This makes them excellent for systems requiring frequent disassembly.
Material Specifications and Selection
ANSI/ASME standards specify acceptable material grades to ensure flanges can withstand the mechanical stresses and chemical environments of their intended service .
Common Material Specifications:
- Carbon Steel: ASTM A105 is a common specification for forged carbon steel flanges.
- Stainless Steel: ASTM A182 covers forged stainless steel flanges (e.g., grades F304, F316) for corrosive environments.
- Low-Temperature Carbon Steel: ASTM A350 for applications where notch toughness is important at low temperatures.
- Alloy Steel: Grades like ASTM A182 F11, F22 are used for high-temperature service in power generation and refineries.
Applications Across Industries
ANSI flanges play essential roles across numerous industries, providing critical connections in demanding applications .
Oil, Gas, and Chemical Industry
In oil, gas, and chemical facilities, flanges connect pipelines carrying dangerous or corrosive chemicals, allowing secure and effective movement of fluids and gases during operation .
Power Generation
Power plants and the nuclear power sector rely heavily on flanges to maintain their systems’ safety, effectiveness, and functionality. They join pipes in steam and water circuits, aiding the movement of steam and heat while producing electricity .
Water and Wastewater Systems
ANSI flanges enable robust joints for seamlessly transporting and distributing water and other fluids in water treatment plants and municipal systems .
HVAC and Mechanical Systems
Flanges aid in the effective transfer and control of thermal energy in heating systems and heat exchangers, ensuring dependable distribution of hot water or steam .
Selection Guidelines
Choosing the correct ANSI flange requires careful consideration of several factors to ensure safety, performance, and longevity .
Key Selection Factors
- Operating Conditions: Determine the maximum pressure and temperature, and consult pressure-temperature rating tables
- Fluid Compatibility: Select materials compatible with the fluid service to prevent corrosion
- Pipe Size: Know the Nominal Pipe Size (NPS) of your piping system
- Flange Type: Choose based on application requirements – Weld Neck for high stress, Slip-On for cost savings, Blind for isolation, etc.
- Face Type: The most common is Raised Face (RF), which improves gasket compression
- Standards Compliance: Ensure flanges meet relevant industry standards and certification requirements
ANSI Flanges vs. Other International Standards
Understanding how ANSI flanges compare to other international standards is crucial for global projects and equipment sourcing .
ANSI vs. DIN Flanges
DIN (German Institute for Standardization) flanges are common in Europe and have different dimensions and bolt patterns compared to ANSI flanges. Conversion adapters are often needed to connect these different standards .
ANSI vs. JIS Flanges
JIS (Japanese Industrial Standard) flanges are used in Japan and other Asian countries, with different nominal sizes and bolt hole patterns tailored to the Asian market .
ANSI vs. BS Flanges
BS (British Standard) flanges are prevalent in the United Kingdom and other Commonwealth countries, with different dimensions and drilling patterns compared to ANSI standards .
FAQs – Frequently Asked Questions
1. What is the difference between ANSI and ASME flanges?
There is no technical difference. ANSI adopts the ASME B16.5 standard for flanges, making them equivalent and interchangeable. The standard is officially titled ASME B16.5 but is commonly referred to as ANSI B16.5.
2. What does “Class 150” actually mean?
Class 150 is a pressure class designation, not a direct PSI rating. A Class 150 flange can handle different pressures at different temperatures, and its maximum allowable pressure decreases as service temperature increases.
3. Can ANSI flanges be connected to DIN or JIS flanges?
While possible, connecting ANSI flanges to other standards requires careful consideration. DIN and JIS flanges have different dimensions and bolt patterns, often requiring special adapter flanges or careful engineering to address mismatches.
4. What are the most common materials for ANSI flanges?
Common materials include carbon steel (ASTM A105), stainless steel (ASTM A182 F304/F316), and various alloy steels for specific temperature and corrosion requirements.
5. Where can I find complete dimensional data for ANSI flanges?
The complete and authoritative source is the ASME B16.5 standard document itself. Reputable flange manufacturers and distributors also publish detailed dimension charts based on this standard.
6. What industries commonly use ANSI flanges?
ANSI flanges are critical components in oil and gas, chemical processing, power generation, water and wastewater treatment, and numerous other industrial applications.
7. How do I select the right pressure class for my application?
Consider your operating pressure and temperature, then consult the pressure-temperature rating tables for your chosen flange material. When in doubt, consult with a qualified engineer or flange specialist.
Conclusion
ANSI flanges are fundamental components in piping systems across countless industries, providing standardized, reliable connections that ensure safety and efficiency. Understanding their specifications, dimensions, pressure ratings, and proper application is essential for engineers, designers, and maintenance personnel working with piping systems.
By selecting the correct flange type, material, and pressure class for your specific application and adhering to proper installation practices, you can ensure long-term, leak-free performance of your piping systems. The comprehensive standardization provided by ANSI/ASME specifications ensures compatibility and safety across global industrial applications.
For all your Flange requirements, consult with reputable manufacturers and suppliers like Texas Flange, who can provide the right flange solutions tailored to your application’s demands.
